Further to an in-depth analysis associated with 25 years of experience, B.Matic has invented the new friction feeder / counter with OCS technology (patent pending). "F350 COUNTER SC" is the latest generation of this family of friciton feeders that has received warm welcome worldwide.
Feeding / counting flat products such as:
F350 COUNTER SC can be used as a stand-alone machine for counting and batching or as a friction feeder for packaging lines activated by external impulse.It is a feeder, counter, batch counter.
Reliable product separation thanks to the acceleration of products at exit.
Verification by encoder to avoid incorrect counting of two joint sheets.
Quick adjustment for products width moving the entire mechanical singulating assembly with a single knob.
Hardware and software for counting and separation in batches with adjustable pause between batches.
Touch screen 4,7" rotatable on turret for convenient use with "text free" icon interface.
Mechanics designed for industrial use.
All moving parts have been protected with surface treatments.
USB and ETHERNET connectivity enabling monitoring from PC, data communication, firmware update and remote support.
Anti-jamming double sheet sensor (optional).
The OCS technology (opposed cantilever shafts) solves the problem of periodic belt replacement, simplifying the operation and reducing machine downtime without need for specialized technicians.

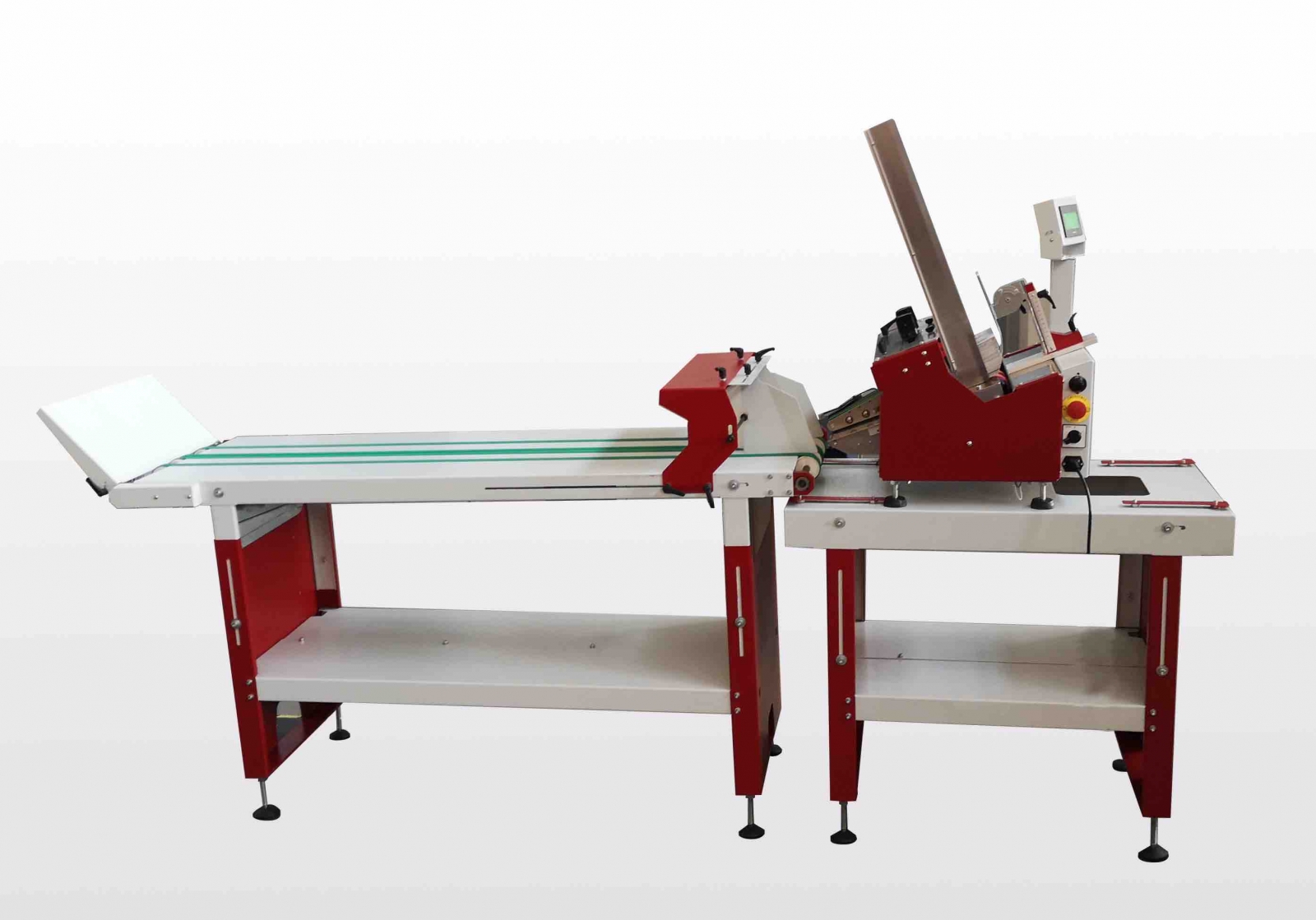

Base with anti-slip guides and adjustable height, interfaced outfeed conveyor for practical product collection, preloading conveyor and others on request.
model | F350 Counter SC | F350 Counter SC Vision | |
Technologia OCS (Opposite Cantliever Shafts) | tak | ||
---|---|---|---|
Maksymalna prędkość liczenia | 200 mb/min. | ||
Czas wymiany pasa w jednym zespole oddzielającym | 1’30’’ | ||
Szerokość produktu | 55/350 min | ||
Grubość produktu | 100 µm (80 GSM) - 10 mm | ||
Wysokość stosu | 600 mm | ||
Enkoder do wykrywania złączonych produktów | tak | ||
Programowanie czasu przerwy i liczby produktów w partii | tak | ||
Wyświetlanie wyniku całkowitego liczenia, ilości w partii, pozostałych arkuszy | tak | ||
Skaner z mocowaniem | nie | tak | |
Automatyczny cykl liczenia | tak | ||
Złącza do sygnałów START/STOP i ALARM do zdalnego sterowania | tak | ||
Ręczny załadunek i kompletowanie produktów bez zatrzymywania maszyny | tak | ||
Panel dotykowy z graficznym interfejsem | tak | ||
Jednostka sterująca PLC, przetwornik częstotliwości, silnik z enkoderem | tak | ||
Wymiary (mm) i waga (kg) | 620 x 510 x H820 (ze stosem) / 60 kg | ||
Zasilanie | 230 VAC 5A 50/60Hz |
model | tab-in |
Maksymalna liczba arkuszy na partię | 9 999 |
---|---|
Maksymalna programowalna liczba partii i arkuszy | 999 999 |
Przycisk odejmowania arkuszy do naliczonej wartości | tak |
Precyzyjne liczenie | tak |
Regulacja opóźnienia odcinania taśmy | tak |
Regulacja długości taśmy | tak |
Odporna na kurz ostłona panelu kontrolnego | tak |
Standardowa długość ramienia | 500 mm |
Możliwość skrócenia ramienia | tak |
Standardowa długość taśmy w rolce | 200 mb |
Gramatura rolki z taśmą | 80 GSM |
Podstawa | Opcjonalnie |
Zasilanie | 230 V |
Waga | 12 kg |
